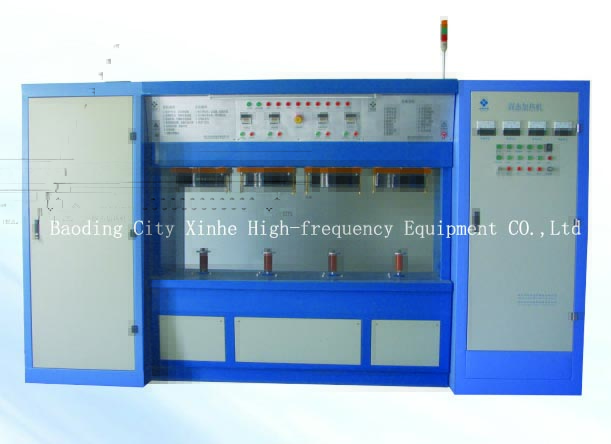

Heating machine for impact bonded bottom cookware
Heating Machine For Impact Bonding bottom Cookware

Used in conduction of heat heating before rub pressure welding for the compound cookware bottom.
Technical parameters
Transistor power
Output power :200KW Frequency:20KHz
Mechanical devices
4 heads
Pneumatic cylinder mode(Required Pneumatic: 5 Kg / cm2)
Cooling device
Pure water circulation devices
Pure water filtration devices
External cooling water: below water temperature of 35 °, 220 L / Min (buyers)
Control System
To SCM as the core, PLC intelligent control
Total electrical input
380V 230KVA
380V 230KVA
Specifications
Gross Weight:about 3T
Boundary dimension:1500 mm(Width)*3800(2200+800+800) mm(Length)*2200 mm(Height)
operation capability of heating machine:
Diameter of bottom of the pot:Φ100~Φ380
thickness of the bottom of the pot:2.0mm~10.0mm


The features of heating machine
Heating distributed uniform
The production speed is quick,and efficiency is high
Stainless steel surface oxidation minimal
Machinery running costs less
The rate of mechanical trouble is low
