Smart card reader is available for the other codes; corresponding various type of Smart card
Software upgrade via RS-232C from PC
Special Over The Air Software Download
4000 Channels TV and Radio Programmable
Automatic multi reception (NTSC / PAL )
DiSEqC 1.2 Positioner
MPEG - 2 Digest & Fully DVB - Complaint
MPEG / Music Cam Layer 1 and 11 , CD Quality Audio Sound
Quick Channel switching time
Fast channel Download from Satellite
SATCO Dx Approved
Network search
SCPC and MCPC receivable from C / Ku band satellite
256 Color on screen display
Easy installing program setup
Subtitle and tele-text supported by OSD
Support Menu Languages; English, Russian, Arabic, Chinese and more
Small window screen picture with EPG and channel property menu
Channel name and satellite name edit function
Input Input Frequency 950 ～ 2150MHz
Connector F -Type
Input Impedance 75 Ohms
Input Level -25 ～ -65dBm
LNB Power 14/ 18 V DC±5%
LNB Control 22 KHz, 600mVp-p
DiSEqC Ver 1.0/ 1.1/ 1.2/ USALS
Maximum Current 500mA Overload Protection
Demodulation QPSK
Symbol Rate 2 ～ 45 Mbaud (SCPC/ MCPC)

Video Decoding MPEG - II
Output NTSC/ PAL (Auto)
Aspect Ratio 16:9, 4:3
Resolution 720 x 480 (NTSC) / 720 x 576 (PAL)
Output Level 1 Vp-p/ 75 Ohms
Output Connector RCA Phone Jack, TV/ VCR Scart

Audio Decoding MPEG - I, Layer 2
Bit Rate Max, 384Kbps
Output Level 0 dBm
Output Impedance 600 Ohms Unbalanced
Output Connector RCA Phone Jack, TV/ VCR Scart

Digital Audio Output S/ PDIF Fiber Optic (Resolution: 20bits)

Serial Data Connector 9 Pin D-sub
Signals RS232, 115,200Kbps

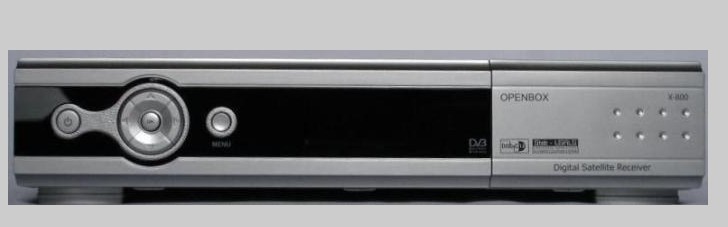

Front Panel 4 Digit 7 Segment Display
Standby, CH Up/ Down, Vol Up/ Down, Menu, OK
RF Modulator RF - Connector 75 Ohms, IEC169 - 2 Male/ Female
Frequency 470MHz to 860MHz
Output Channel CH 21 - 69
TV Standard PAL B/ G, PAL I, PAL D/ K, NTSC

Remote Control 9m
Supply Voltage 110/ 240V AC, 50/ 60 Hz
Power Consumption 25 Watts Maximum
Dimension 300 x 220 x 60 (W x D x H)
Operating Temperature 0℃ to 50℃
