1 Coiler type pay-off

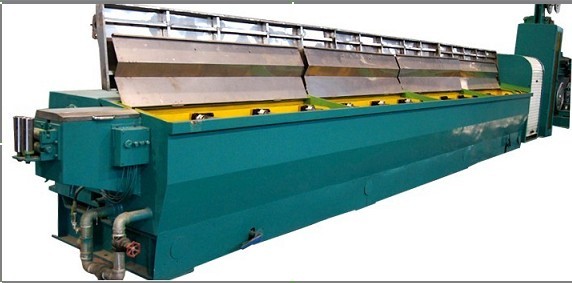

2 Main drawing machine
3 Tension control device
4 Dual-spooler automatic take-up
5 Electric control system
6 Gear box lubrication system
7 Drawing liquid supplying system
8 Wire pointer and stringer

1 Horizontal structure: The main drawing machine adopts horizontal type and dual motor drive. Such design can realize quick die changing and easy sliding ratio changing of former die by resetting the mechanical speed increase ratio between the final capstan and the former capstan.
2 Dual-operating position pay-off: Coiler type pay-off can realize the two operation position.
3 Casting iron main body: Main body of drawing machine is made of casting iron which processed by tempering treatment. Such process technology makes the body rigid and can realize vibration reduction.
4 Long service life: The transmission gear adopts spiral gear which processed by gear grinding, the max. modulus of gear is eight (m=8), therefore the machine features low noise and long
