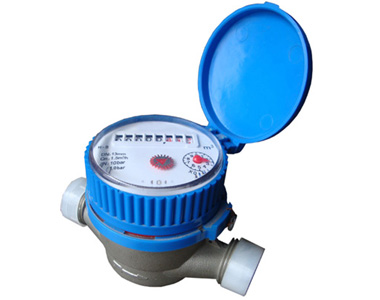

Application:Measuring the volume of cold or hot potable water passing through the pipeline
FEATURE
◆Dry type, small, light, 8 digits, magnetic drive, magnet
◆resistance, 360 degrees free rotating register, corrosion
◆resistant body, inlet strainer, Low Head loss, easy and long term clear reading etc.
WORKING PRINCIPLE
◆Water passing through the water meter, causing the turbine to turn.
◆The turbine rotation is magnetically transmitted to the register on which the reading is made. Reeding is accomlished by means o pointersand numbered cylinders with high-resolution. Shock-resistant dal.
STANDARD
◆Cold Water Meter: ISO 4064 Class A ISO 4064 Class B
◆Hot Water Meter: ISO 4064 Class B
WORKING CONDITION:
◆Water temperature:≤40℃ for cold water meter
≤90℃ for hot water meter
◆Working pressure:≤1MPa or 1.6MPa optional(10bar or 16bar optional)
MAXIMUM PERMISSIBLE ERROR
◆In the lower zone from Qmin inclusive up to but excluding Qt is: Cold potable and Hot water meter ±5%
◆In the upper zone from Qt inclusive up to and including Qs is: Cold potable water meter ±2%, Hot water meter ±3%.
ACCESSORIES
◆With every meter, there will be one set couplings optional: 2pcs tube, 2pcs nut and 2pcs gasket.
NOTE
◆Meters are factory tested to be class B when installing horizontally, but class A when installing vertically
