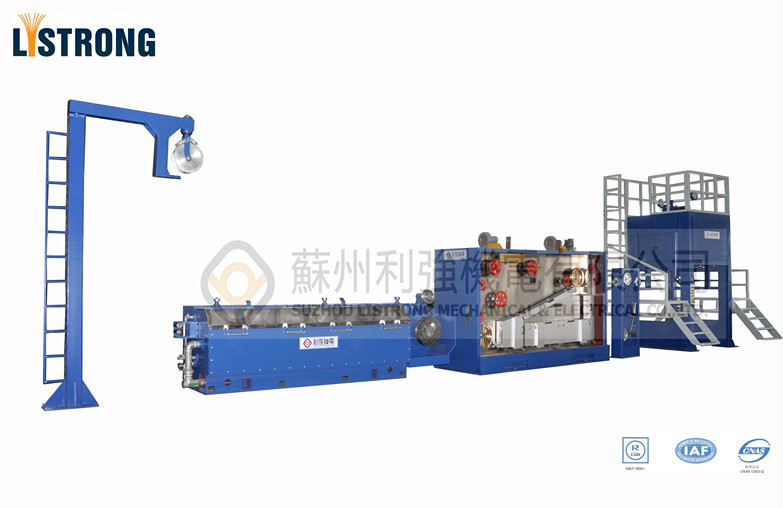

9DT Rod Break Down wire drawing machine with continuous annealing
Machine type：9DT
Inlet diameter (MM）：φ8
Outlet diameter (MM)：Φ2.5-φ3.5
Slip ratio of m/c：20%
Fix speed capstan slip ratio：17%
Transmission method ：Transmit by high precision gears
Max. speed(MPM)：600
Lubrication system of drawing：All immersing type
Max. Capstan dia. (MM) ：φ400
Fix speed capstan dia. (MM)：φ400
Main machine power：160(DC)
Max. Number of Drawing dies：9
Annealing method：DC three section
Max. annealing voltage (DC)：55V
Max. annealing current (DC)：4000A
Inlet diameter (MM）：φ8
Outlet diameter (MM)：Φ2.5-φ3.5
Slip ratio of m/c：20%
Fix speed capstan slip ratio：17%
Transmission method ：Transmit by high precision gears
Max. speed(MPM)：600
Lubrication system of drawing：All immersing type
Max. Capstan dia. (MM) ：φ400
Fix speed capstan dia. (MM)：φ400
Main machine power：160(DC)
Max. Number of Drawing dies：9
Annealing method：DC three section
Max. annealing voltage (DC)：55V
Max. annealing current (DC)：4000A
