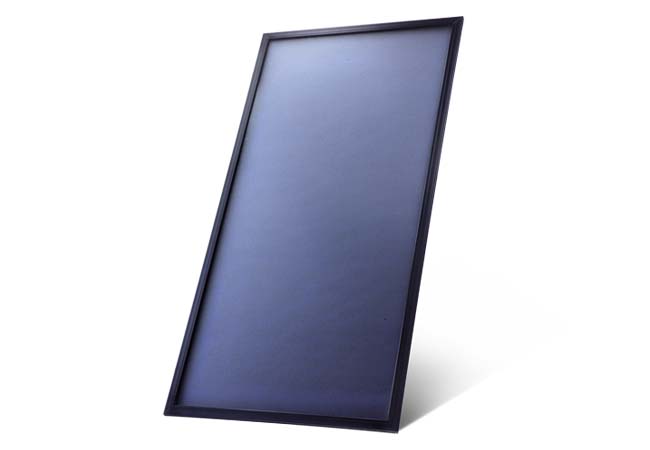

flat plate solar collector

Product ID: DR-SC-03

Send Inquiry
Technical Data DR-SC-01
Collector type Roof-mounted collector
Overall area (m2) 2.02
Absorber area (m2) 1.74
Aperture area(m2) 1.96
L×W×H(mm) 2005*1005*80
Weight(kg) 32
Absorber capacity(L) 32
Housing Aluminum alloy
Surface Aluminum alloy
Back Steel plate
Absorber sheet Cu/Al,oxide film
Absorption(%) 94
Emission(%) 8(800±500)
¢manifold(mm) ¢22*0.75
¢risers(mm) ¢10*0.5
Glass Woven ultra white toughened solar safety glass
Transmittance of glass(%) ≥91
Insulation Fiberglass cotton with antiflaming silver paper veneer
Max. stagnation temperature 2500
Max.working pressure 1.2Mpa
Rated working pressure 0.8Mpa
Heat transfer medium Polypropylene glycol
Approved installation angle Min. 150, Max.750
