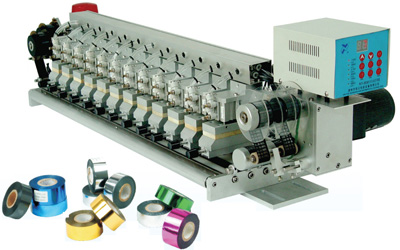

NY-806A Multi-head Hot Coding Machine Applications:
It is applicable to all types of vertical multi-rows packing machines and automatic canned capping and packing machines for jelly, water cup, etc.

Features:
1. Automatically give the warning of running out of ribbon. Use the micro-computer to recycle the carbon for saving consumable material.
2. Print space can be adjusted flexibly; the coding speed keeps pace with the packing machine which can make sure the coherence of printing position.
3. From one-head to 12-head, single-row and double-row are available to meet code-making needs in a wide range.

Technology Data:
Model NY-806A
Driver Motor、Compressed Air
Voltage 220V/50Hz
Power 200W-1200W
Signal required Contact signal、Photoelectric signal、Micro-switch
Print speed 60 Times/min
Print area Max.16mm×35mm
Font size 2mm×3.4mm×7.2mm (can be custom-made)
Consumable Ribbon
Weight 20kg
Dimension (L×W×H) 700mm×370mm×300mm (Remark: 10 heads)
Remarks: Other specification can be customized.
