Performance and Characteristics:

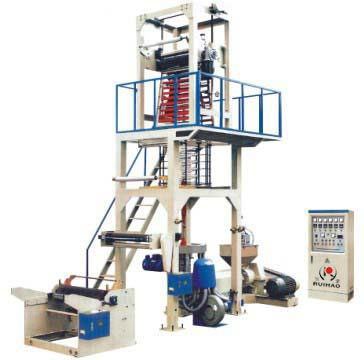

The machinge body is channel steel frame traction frequency friction,with single rolling friction,lift up and down which is suitable for blowing high-low pressure polyethylene industral fiml and agricultural film.
Main Teachnical Variables:
Model A50 A55 A65 A70
Diameter of screw孜50 孜55 孜65 孜70
Reduced diameter of film(mm)100-600 200-800 300-1000 400-1200
Single-face Thickness of felm(mm)0.008-0.06
0.008-0.06 0.008-0.06 0.008-0.06
Max.output(kg/h)25-30 35-40 60-65 65-70
L/D 28ㄩ1 28ㄩ1 28ㄩ1 28ㄩ1
Power of main motor(kw)11 15 18.5 22
Power of Traction motor(kw)1.1 1.1 1.5 1.5
Heating Power(kw)13 19 21 23
Outline diameter(L℅W℅H)(mm) 5000℅2000℅4200 5200℅2200℅4500 5500℅2500℅5200 5800℅7800℅6300
Weight(T) 1.3 1.5 1.7 2
The machinge body is channel steel frame traction frequency friction,with single rolling friction,lift up and down which is suitable for blowing high-low pressure polyethylene industral fiml and agricultural film.
Main Teachnical Variables:
Model A50 A55 A65 A70
Diameter of screw孜50 孜55 孜65 孜70
Reduced diameter of film(mm)100-600 200-800 300-1000 400-1200
Single-face Thickness of felm(mm)0.008-0.06
0.008-0.06 0.008-0.06 0.008-0.06
Max.output(kg/h)25-30 35-40 60-65 65-70
L/D 28ㄩ1 28ㄩ1 28ㄩ1 28ㄩ1
Power of main motor(kw)11 15 18.5 22
Power of Traction motor(kw)1.1 1.1 1.5 1.5
Heating Power(kw)13 19 21 23
Outline diameter(L℅W℅H)(mm) 5000℅2000℅4200 5200℅2200℅4500 5500℅2500℅5200 5800℅7800℅6300
Weight(T) 1.3 1.5 1.7 2
Features
. high speedMain Products
film blowing machine printing machine bag-making machine etc.
