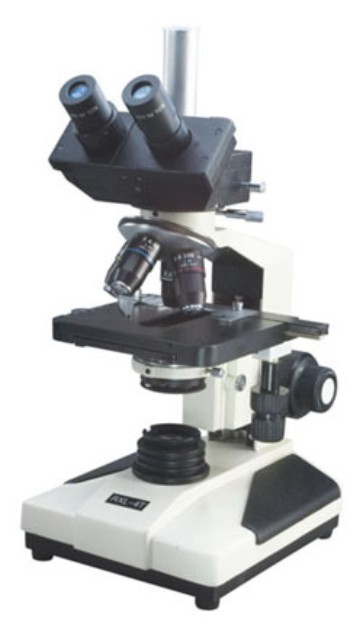

Observation Head: 45-degrees inclined Trinocular head rotatable through 360-degrees.
Nosepiece: Quadruple nosepiece with accurate centering and positive click stops
Stage: Built in graduated mechanical stage of 135x140mm for easy and smooth scan of specimen slide over range of 50x70mm
Illumination: 6V-20W halogen lamp, 220/110Volts. Mirror attachment for working in day light
Objectives: Achromatic DIN Size 4X - 10X- 40X SL and 100X SL Oil immersion
Eyepieces: DIN Size Wide field WF 10X and H5X or H6X or H15X (any two pairs)
Nosepiece: Quadruple nosepiece with accurate centering and positive click stops
Stage: Built in graduated mechanical stage of 135x140mm for easy and smooth scan of specimen slide over range of 50x70mm
Illumination: 6V-20W halogen lamp, 220/110Volts. Mirror attachment for working in day light
Objectives: Achromatic DIN Size 4X - 10X- 40X SL and 100X SL Oil immersion
Eyepieces: DIN Size Wide field WF 10X and H5X or H6X or H15X (any two pairs)
Features
- Observation Head:
- 45-degrees inclined Trinocular head rotatable through 360-degrees.
- Nosepiece:
- Quadruple nosepiece with accurate centering and positive click stops
- Stage:
- Built in graduated mechanical stage of 135x140mm for easy and smooth scan of specimen slide over range of 50x70mm
- Objectives:
- Achromatic DIN Size 4X - 10X- 40X SL and 100X SL Oil immersion
- Eyepieces:
- DIN Size Wide field WF 10X and H5X or H6X or H15X (any two pairs)
