Detailed Product Description
Diameter Range
85-1500mm
Maximum Tube Length
Unlimited mm
Thickness of Strip
0.35-1.2mm
Width of Strip
137-140mm
Strip Speed
1-40m/min
Suitable Material
Aluminum, Stainless steel, Galvanized steel,etc.
Dimension (L x W x H):
2350mm x 2200mm x 2580mm
Weight
2000kg
Main Motor Power
5.5kW
Cutting Motor Power
4kW
Air Pressure
0.5-0.7Mpa
Control System
Japan Omron transducer & PLC
Diameter Range
85-1500mm
Maximum Tube Length
Unlimited mm
Thickness of Strip
0.35-1.2mm
Width of Strip
137-140mm
Strip Speed
1-40m/min
Suitable Material
Aluminum, Stainless steel, Galvanized steel,etc.
Dimension (L x W x H):
2350mm x 2200mm x 2580mm
Weight
2000kg
Main Motor Power
5.5kW
Cutting Motor Power
4kW
Air Pressure
0.5-0.7Mpa
Control System
Japan Omron transducer & PLC
Features

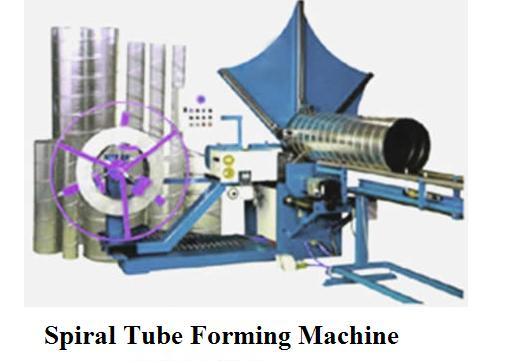

- Spiral tube forming machine
- This spiral tube forming machine is good for making round duct.
Main Products
Pittsburgh lock machine, lockformer, flange forming machine
