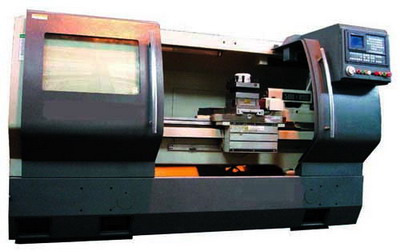

CAK5085 CNC Lathe
Specification (CAK5085)
Capacity:
1. Max. swing over bed (mm)500
2. Max. swing over carriage (mm)300
3. Max. turning Dia. (mm)500
4.Distance between centers (mm) 640
5.Max. turning length (mm) 600
Spindle:
1. Spindle speed (Stepless) (r/min) Low:23~230 Mid:68~680 High:220~2200
2. Max. bore Dia. (mm)70
3. Type of nose: A8
4. Power of spindle motor (Kw) 7.5
Chuck:
1.Size: (mm) 254
Travel:
1. Rapid speed of X. Z axis (m/min) X: 4 Z: 8
2. Max. Travel of X. Z (mm) X: 250 Z: 640
Tool post
1. Turret: 4-station or 6-station (optional)
2. Tool size (mm) 25x25
Sleeve:
1.Dia. (mm) 75
2.Travel (mm) 150
3.Taper (MT) 5
Others:
1. Overall dimension (L*W*H) (mm) 3085*1800*1650
2. Machine weight (Kg) 2300
3. CNC system GSK 980TDa/DA98
