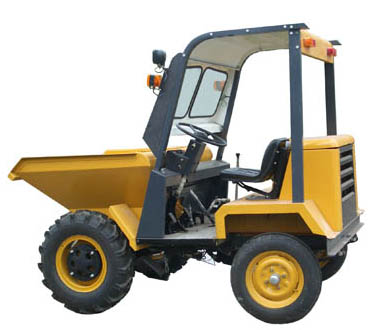

1TON DUMPER WITH WINDOW
Model SD10-9D(FC1)
Payload 1000Kg
Engine power Model S195NM
Type Horizontal single-cylinder four-stroke
radiator water-cooled
12 Hours rated power/Rev 8.8KW/2000rpm
Capacity of bucket 0.47m3
Drive type 4plus2
Max.speed 23Km/h
Grade ability 21%
Min.turning radius less than 4m
Overall size 2650plus1600plus1450mm
Weight 1000Kg
Hand crank starting engine,without driver shield,
with full engine casing,mechanic tipping hopper,luxury seat
OR
Mechanic tipping hopper,electric starting engine,steel driver shield,full engine casing ,luxury seat
Payload 1000Kg
Engine power Model S195NM
Type Horizontal single-cylinder four-stroke
radiator water-cooled
12 Hours rated power/Rev 8.8KW/2000rpm
Capacity of bucket 0.47m3
Drive type 4plus2
Max.speed 23Km/h
Grade ability 21%
Min.turning radius less than 4m
Overall size 2650plus1600plus1450mm
Weight 1000Kg
Hand crank starting engine,without driver shield,
with full engine casing,mechanic tipping hopper,luxury seat
OR
Mechanic tipping hopper,electric starting engine,steel driver shield,full engine casing ,luxury seat
Specifications
