Topall brand 500L concrete mixer can be equipped to concrete batching plant in African countries and Mid-East areas.
Model RDCM500-16DH(JZR500)
Capacity of discharging 750L
Capacity of loading 500L
Pump water pump with water tank
Drum rotating speed 13r.p.m
Power source YANMAR
Total power 16.2kw
Gear case Mechanical gear box with friction clutch
Dimension 3750*2240*3800mm
Weight 2050kg

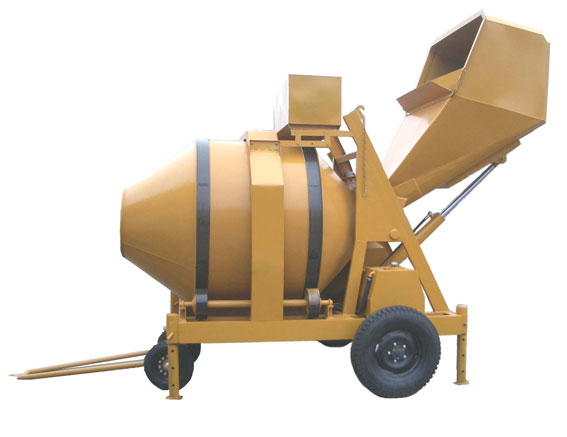

Reversing Drum Concrete Mixer
The drum rotates in one direction for mixing and in the opposite direction for discharging the concrete. There are two types of blades attached to the inner walls of the drum. One set drags the concrete upwards and toward the center of the mixer when the drum rotates in one direction; the second set of blades pushes the concrete toward the opening when the drum rotates in the other direction. The blades have a spiral arrangement to obtain the desired effect for discharging and mixing.
Model RDCM500-16DH(JZR500)
Capacity of discharging 750L
Capacity of loading 500L
Pump water pump with water tank
Drum rotating speed 13r.p.m
Power source YANMAR
Total power 16.2kw
Gear case Mechanical gear box with friction clutch
Dimension 3750*2240*3800mm
Weight 2050kg
Reversing Drum Concrete Mixer
The drum rotates in one direction for mixing and in the opposite direction for discharging the concrete. There are two types of blades attached to the inner walls of the drum. One set drags the concrete upwards and toward the center of the mixer when the drum rotates in one direction; the second set of blades pushes the concrete toward the opening when the drum rotates in the other direction. The blades have a spiral arrangement to obtain the desired effect for discharging and mixing.
