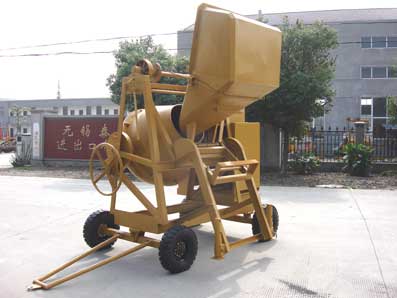

200L concrete mixer
200L tilting drum concrete mixer
Model TDCM200-7D
Capacity of discharging 320L
Capacity of loading 200L
Drum speed 20-22r.p.m
Engine power transmission Chain
Chassis Heavy duty robust steel chassis
Powered 6.5kw
Power source Diesel engine,
water-cooled with radiator
Overall size 1930*23000*2950mm
Weight 1250 Kg
Heavy duty loading hopper with wire rope,brake,clutch
Model TDCM200-7D
Capacity of discharging 320L
Capacity of loading 200L
Drum speed 20-22r.p.m
Engine power transmission Chain
Chassis Heavy duty robust steel chassis
Powered 6.5kw
Power source Diesel engine,
water-cooled with radiator
Overall size 1930*23000*2950mm
Weight 1250 Kg
Heavy duty loading hopper with wire rope,brake,clutch
Certificate
- ISO
- CE
Main Products
concrete mixer, site dumper, block moulding machine, concrete batching
