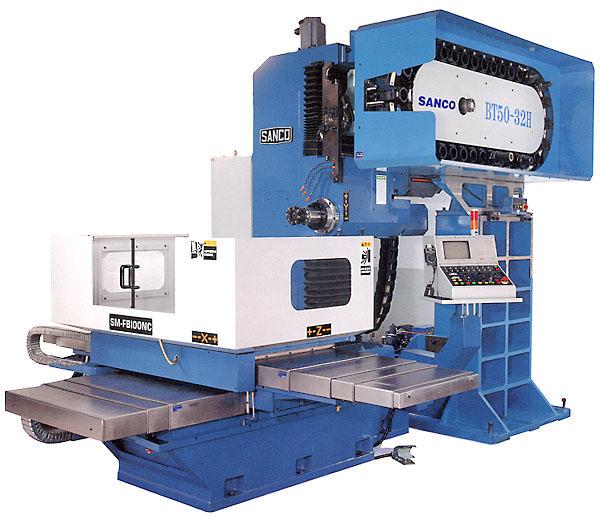

High accurate and rigid spindle. The automatic spindle oil cooler can be used too, this maintains a long time and high speed machining.
The gear box employed with Germany Z.F two steps transmission, it can supply low speed, high torque also can supply high speed for different requirement.
The spindle drive system with AC servo motor and transmission box.
The gear box employed with Germany Z.F two steps transmission, it can supply low speed, high torque also can supply high speed for different requirement.
The spindle drive system with AC servo motor and transmission box.
Specifications
- Travel: 1,200 x 1,100 x 800 mm
- Spindle Motor: 15/10 HP
- Table Size: 1,100 x 800 mm
- Table Max. Loading: 1,200 kgs
- Fanuc, Meldas, Siemens, Heidenhain controls available.
Features
- Unclamping tool structural is good for spindle.
- Automatic lubricant system employed with high pressure.
- The control panel gives stable and correct operation.
- Spindle oil cooler is available.
- ATC: 32 tools, 40 tools is available.
