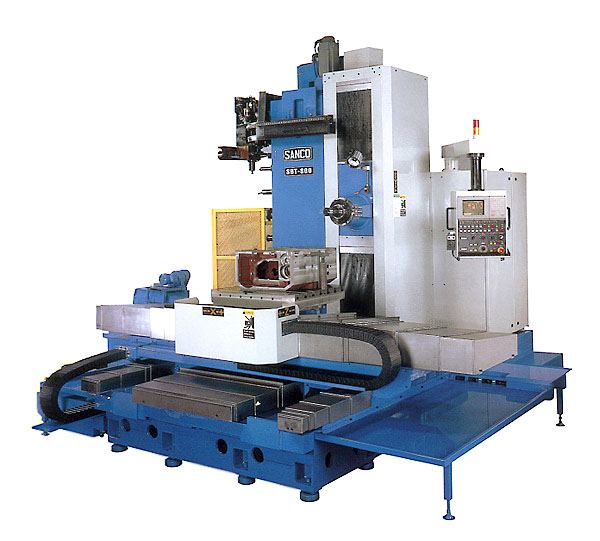

Bed is with rigid construction, and supported by dense ribs, base and Z-axis are one-piece designing, Z-axis has four linear guides.
A design for separating oil and coolant fluid is introduced to reduce the corruption of coolant fluid and increase the recycling oil, good for environmental protection.
A complete support frame is designed for there axial travels suspending does not influence the precision.
X axis and Y axis are with Heidenhain linear scales to increase machining precision.
A design for separating oil and coolant fluid is introduced to reduce the corruption of coolant fluid and increase the recycling oil, good for environmental protection.
A complete support frame is designed for there axial travels suspending does not influence the precision.
X axis and Y axis are with Heidenhain linear scales to increase machining precision.
Specifications
- Travels: 1,600 x 1,200 x 1,000 mm
- Spindle Taper: ISO 50 / BT-50
- Spindle Speed: 10 ~ 2,500 rpm
- Table Size: 800 x 800 mm
- Table Max. Loading: 2,500 kgs
Features
- Three axes are with precision ball screws of 50 mm.
- Y axis hard guide is laminated with turcite B.
- Spindle head is balanced by hydraulic pressure.
- 20/15 HP serve motor.
- Auto pallet changer is available.
